Features
USP methods 1, 2, ASTM B527-15 and DIN ISO 787-11:1995
Intuitive touch interface
One or two test stations
Upgradeable at any time
TestAssist automatically calculates Hausner Ratio and Compressibility Index
5 Variations, intelligent SwitchPlate System and TestAssist

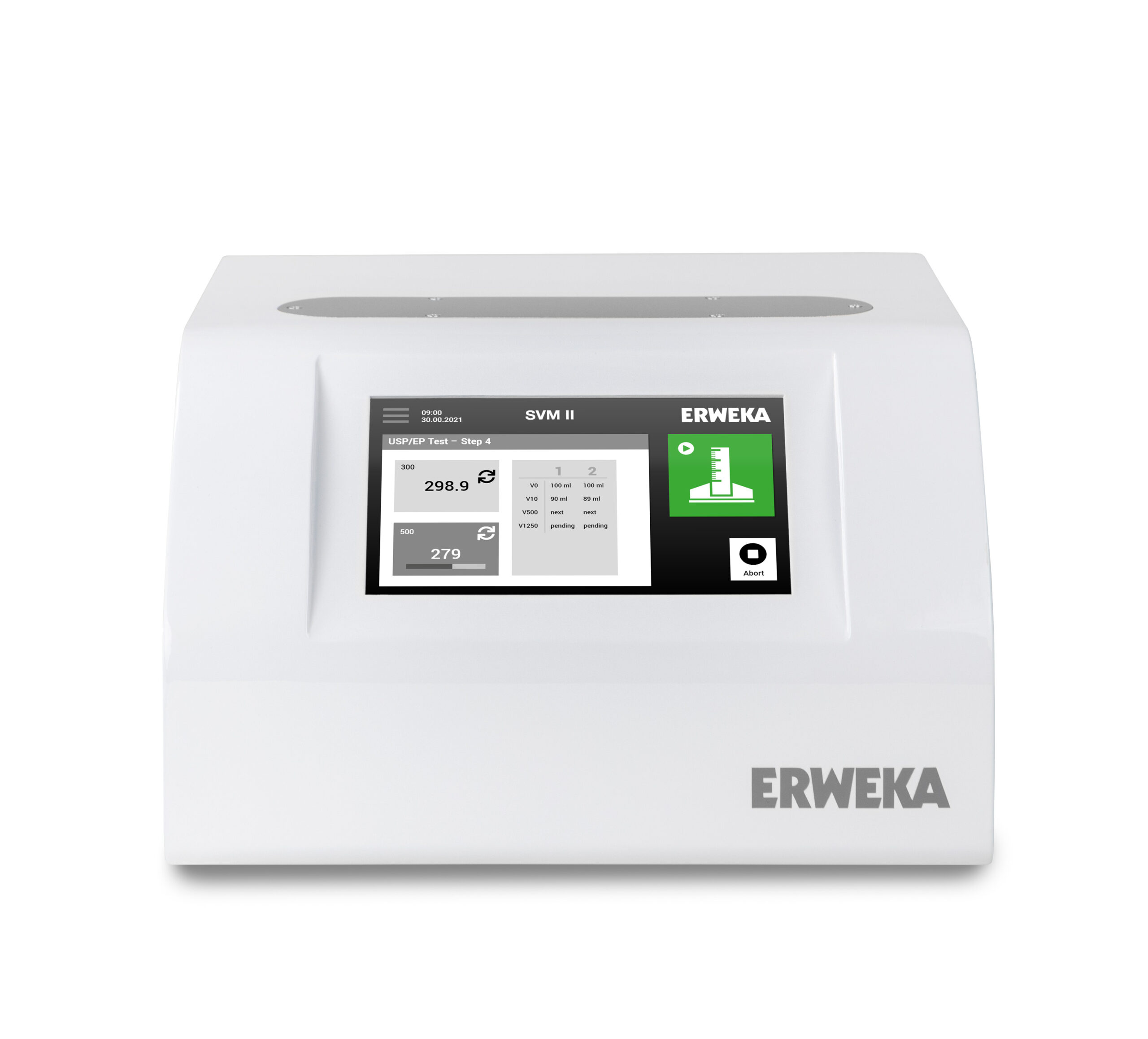

The new SVM II offers the same flexibility as its 5 predecessor models. It can test for USP method 1 and method 2 and can be equipped with either one or two test stations of the same method or a combination of both. Optional changing from one variant to another can be done by the user within minutes. This makes the SVM II the most flexible tapped density tester we ever built.
With the innovative SwitchPlate system, the SVM II is as flexible as ever before. Available SwitchPlates:
- USP 1 with 1 station
- USP 1 with 2 stations
- USP 2 with 1 station
- USP 2 with 2 stations
- 2 station combination with USP 1 and USP 2
The SVM II is controlled by a high resolution touch display with our modern ERWEKA user interface. With its innovative TestAssist, the user is guided through the tapped density testing process from start to finish. The TestAssist automatically computes Tapped Density, Hausner Ratio and Compressibility Index – all the user has to do is read the values from the cylinder and enter them when asked. This reduces errors and delivers results as fast as possible.
SVM II is also equipped with the DirectHelp feature – giving help and guidance at all times at the touch of a button.
1, 2, Test!
The SVM II Touch Interface with TestAssist
The touch interface of the SVM II focuses the user on the most important task to be done with the SVM II: tapped density testing. The central part is the TestAssist, an intelligent assistant with realtime feasability checks that provides support and guarantees the conformity of the entered parameters according to USP/EP/JP. Tapped density testing thus becomes simple and safe. But we didn‘t stop at TestAssist – all other functions, such as the control panel, the qualification menu or the service menu, are also designed to connect user and hardware as quickly as possible.

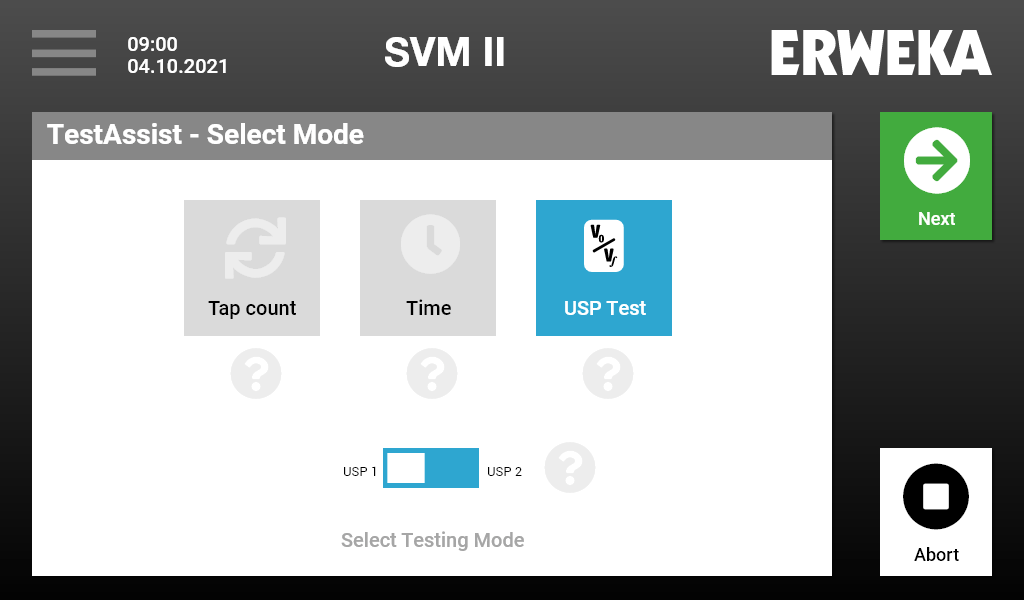

TestAssist – Tapped density testing easier than ever!
TestAssist is a comprehensive, yet simple wizard for the quick execution of tapped density testing. The user is guided step by step through the parameterisation, whereby incorrect entries are prevented by TestAssist. As soon as the tapped density test is running, the test screen displays all important status information about the test at any time.
When testing according to USP methods, TestAssist prompts the user to enter the required values. Afterwards, it then computes the results for Tapped Density, Hausner Ratio and Compressibility Index completly automatically.
With the help of the intelligent TestAssist, tapped density testing is as easy and fast as ever before!
Testing in 3 simple steps
Parametrisation within conform ranges
SVM II SwitchPlates
Five plates for one tester!
ERWEKA offers five different SwitchPlates including a license key to purchase with the new SVM II. All SwitchPlates can be interchanged, if requirements change, it is possible to upgrade every SVM II with a new SwitchPlate.
The new SwitchPlate system offers maximum flexibility and makes every SVM II absolutely futureproof!
Installing a SVM II SwitchPlate is a two step process – first the user changes the plate on the SVM II by fixing it with 6 small screws. The next step is done in the configuration panel – the activation code needs to be entered, which is part of the purchase of a SwitchPlate. This activates the specific SwitchPlate in the TestAssist and report engine of the SMV II.
The following SwitchPlates are available:
This plate has 1 test station and is able to test according to USP method 1
This plate has 2 test stations and is able to test according to USP method 1
This plate has 1 test station and is able to test according to USP method 2.
This plate has 2 test stations and is able to test according to USP method 2
This plate has 2 test stations and is able to test either according to USP method 1 or USP method 2.
SVM II Accessories

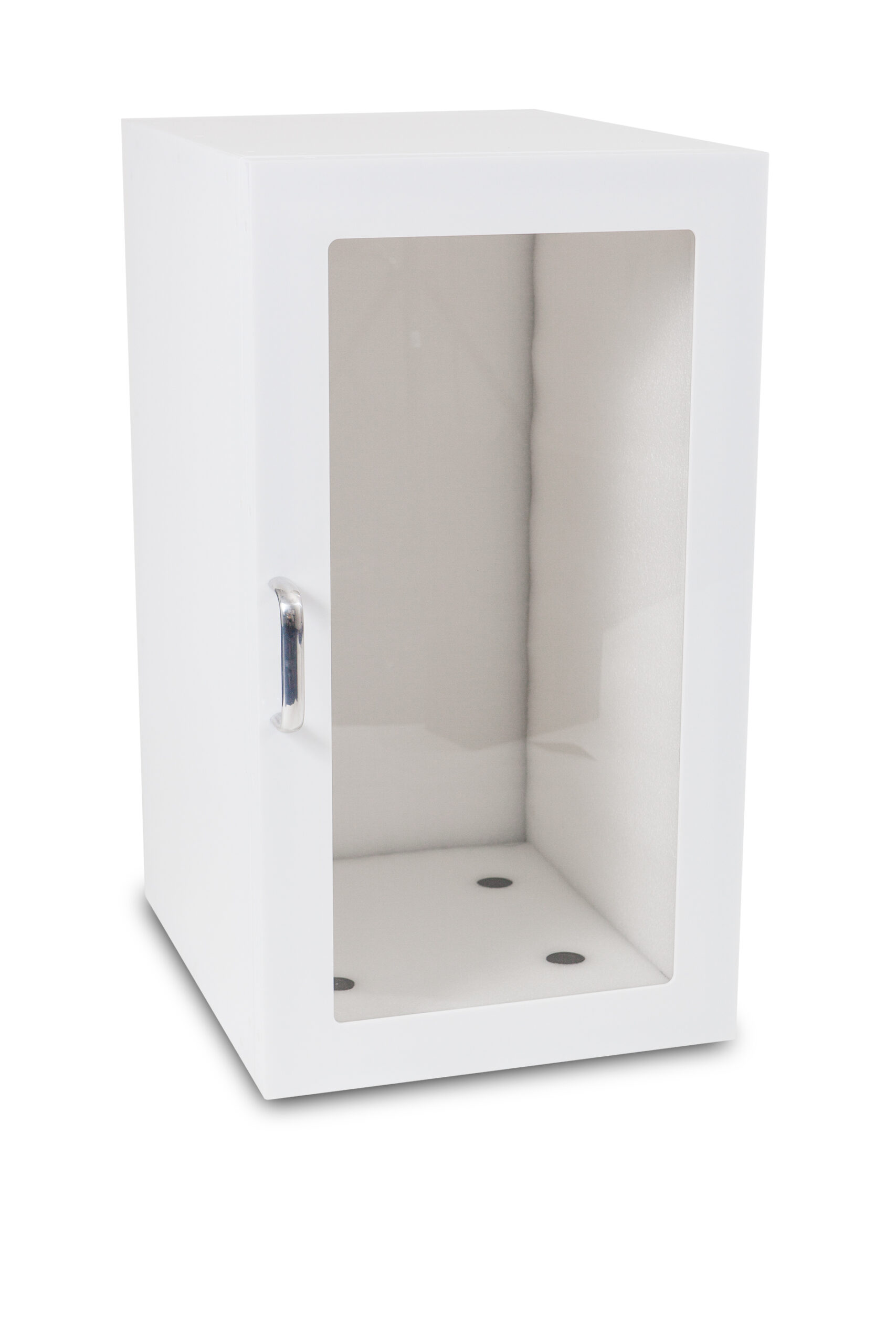

The ERWEKA noise reduction box is the perfect addition to our tapped density tester. The noise box is made of sturdy polymer housing and is lined with a 30 mm thick, white EPE damping material.
It reduces the noise of a tapped volume tester by up to 25 dB (A).*
Specifications
- Height, width, depth: 196.5 mm / 300 mm / 326 mm
- Weight: 17 kg
- Voltage: 115/230 V; 50/60 Hz
- Fuses: 1A
- USB A/B, Ethernet, RS232
- USP method 1: 300±15 taps/min; tap height 14±2mm
- USP method 2: 250±15 taps/min; tap height 3±0.2mm
- EP 2.9.34 Bulk density and tapped density of powders
- ASTM B527-15 Tap density of metal powders and compounds
- DIN EN ISO 787-11:1995 General test methods, pigments and fillers
- 10 reports (temporarily)
- Network export via external software (Export Manager) as XML / PDF
